Welcome to your PHYSICS ENTRANCE 2016

choose the best answer

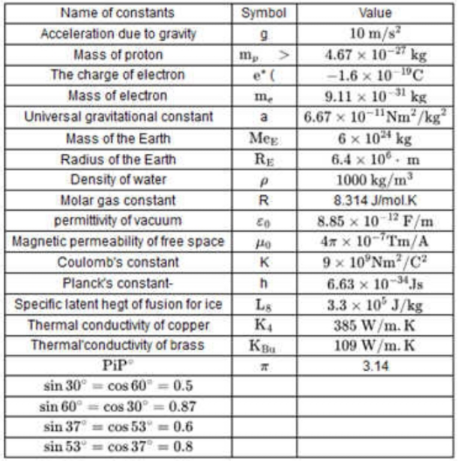

You may refer to the information given below when you need to work on some of the questions.

1.

Lenz‘s law states that the direction of the induced current in a loop is in such a way that the current

creates a magnetic field that opposes the change in magnetic flux through the loop.

creates a magnetic field that reinforces the change in J magnetic flux through the loop.

is in the same direction as that of the applied magnetic field that is causing it.

is in opposite direction to that of the applied magnetic field that is causing it.

2.

Which one of the following statements is correct about the resistance of a conducting wire? The resistance of the wire is

inversely proportional to its length.

inversely proportional to its cross-sectional area.

directly proportional to the square of its length.

directly proportional to the square of its cross-sectional area.

3.

Consider an ideal transformer having N_pand N_s, turns, and voltages v_p and v_s , in its primary and secondary coils, respectively. Which one of the following is the correct ideal transformer equation?

4.

Which one of the following statements is correct about the electrical conductivity of materials? Materials in which all the

outer most shell electrons are free to move within the material are semiconductors.

inner and outer most shell electrons are tightly bound to its parent atom are insulators.

inner and outer most shell electrons are free to move within the material are conductors.

outer most shell electrons are tightly bound to its parent atom are conductors.

5.

Which one of the following statements distinguishes precision from accuracy?

Precision is a measure of the closeness of repeatedly measured values to each other, whereas accuracy is related to the number of significant figures.

Accuracy measures how exact a value is whereas precision indicates how close a measured value is to the true value.

Precision indicates how close a measured value is to the true value, whereas accuracy refers to the closeness of repeatedly measured values to each other.

Precision is a measure of the closeness of repeatedly measured values to each other, whereas accuracy refers to the closeness of measured values to the true value.

6.

Which of the following statements about the nature electromagnetic waves is correct? Electromagnetic waves are transverse waves produced when

electric and magnetic fields are oscillating perpendicular to each other.

charges are placed at rest in an electric and magnetic fields that are perpendicular to each other.

charges are placed at rest in an electric and magnetic fields that are parallel to each other.

electric and magnetic fields are oscillating parallel to each other.

7.

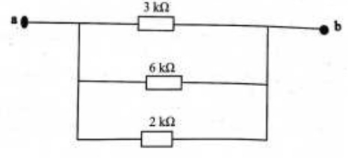

Three resistors are connected between points a and b as shown in the figure below.

The effective resistance of the circuit is

11.0Ω

11.0kΩ

1.0kΩ

1.0Ω

8.

A concave mirror has a radius of curvature of 30.0 cm . It is positioned so that the upright image of an object is 2.0 times the size of the object. How far is the object from the mirror?

22.5 cm

15.0 cm

10.0cm

7.5 cm

9.

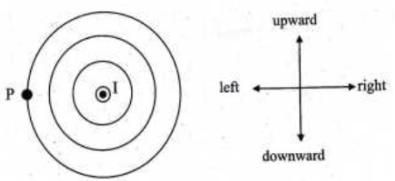

In an experiment to determine the direction of the magnetic field around a long straight current-carrying wire, a student placed a small compass at point P , as shown in the diagram.

If the direction of the current in the wire is directed out- of the page, then the magnetic needle of the compass will point

to the left

upward

downward

to the right

10.

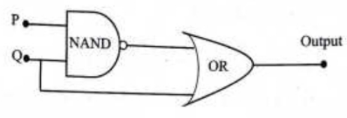

A combination of logic gate is constructed from an NAND gate and an OR gate, as shown in the diagram below.

The truth table for the logic circuit shown above is

11.

Which one of the following is correct about the four basic forces in nature?

Gravitational force is attractive force that acts on the scale of the atomic nucleus.

Weak nuclear force keeps the electrons in their orbit around a nucleus

Electromagnetic force is the weakest of all the forces in nature.

Strong nuclear force is short-range force that holds protons and neutrons together inside a nucleus.

12.

Which of the following is correct about impulse?

Impulse due to a force exerted for a short time is equal to impulse due to the same force exerted for a long time.

The direction of the impulse is in the same direction to change in the momentum of the object.

The impulse is smaller than change of momentum which caused by the applied force.

During momentum change final momentum of an object is along the impulse on the object.

13.

A person walked 10 m in a direction 53° North of East, 10 m North, and finally 20 m in a direction 37° North of West. The magnitude of the person‘s displacement is

30.0 m

20.0 m

31.6 m

40.0 m

14.

Which of the following pair of vectors is collinear?

15.

A hall is thrown vertically upward with 12 m/s from the ground. Its speed when the ball is 4.0 m above the ground is

15 m/s.

10 m/s.

12 m/s.

8 m/s.

16.

An object is projected at angle θ from the horizontal with initial velocity v₀.
Which one of the following expressions represents the relationship between maximum height, h_max, and range of the projectile, R ?

17.

A 0.5 kg block moving with an initial speed of 5.0 m/s slides 2.5 m on a rough horizontal surface before coming to rest. The coefficient of kinetic friction is

0.4

0.1

0.3

0.5

18.

A 0.2 kg ball is kicked from the ground at 16 m/s in a direction making an angle 8 above the horizontal. Neglecting air resistance, the magnitude of velocity of the ball when it is 3.0 m from the ground is

16 m/s.

2 m/s.

14 m/s.

7 m/s.

19.

The angular speed of a disk rotating about its axis increases by 2000rad/s in

a time interval of 3.0 s . If the moment of inertia of the disk is 0.6kg m², what is the average torque on the disk?

670 Nm

6000 Nm

1200 Nm

400 Nm

20.

A small ball of mass m tied to a rope of length 1 is moving along a vertical B circle about a point O as shown in the figure.

If At A,B,C and D are points on the path, then which one of the following is correct about the force exert on the ball at these points?

At point D , the radial force is equal to the tension on the rope.

At point A, the radial force is in opposite direction to the gravitational force on a ball.

At point B, the radial force is equal to the gravitational force on the ball.

At point C , the radial force and the tension on the rope are in opposite direction.

21.

What do you call the sound wave that is heard after reflection from a hard surface?

Pitch

Loudness

Timber

Echo

22.

The angular momentum of a rotating object is defined as the product of its

mass and the angular velocity.

moment of inertia and the square of the angular velocity.

moment of inertia and angular velocity.

mass and one-half of the square of the angular velocity.

23.

Which one of the following waves is identified as longitudinal wave?

S-wave of Earthquake

Deep water wave

Sound wave

Wave on a vibrating string

24.

Which of the following statements is correct about the components of the velocity of a ball projected up at an angle of θ with the horizontal?

Neglecting the air resistance,

the horizontal component of the velocity remains constant throughout its journey.

the horizontal velocity of the ball is equal to zero at the maximum

the vertical component of the velocity remains constant throughout its journey.

the vertical component of velocity increases while the horizontal component of velocity decreases.

25.

Which one of the following statements is correct about the electric field due to a charged spherical solid conductor?

It is non-zero constant outside the sphere.

It is non-zero constant inside the sphere.

It is zero inside the sphere.

It is parallel to the surface of the sphere.

26.

A metal wire made of coefficient of linear expansion ∝ is heated so that its temperature is changed by ∆T. If the length of the wire before heating is L₀ , which one of the following expressions is correct for the final length of the wire after heating?

27.

What amount of heat energy is required to completely melt 200 g of ice at 0ºC ? (Take specific latent heat of melting for ice, L_F 3.3 x 10^-5 J/kg )

6.60 x 10⁴J

1.65 X 10³J

1.65 x10⁷ J

Zero

28.

The orbital speed of a satellite at a height of 780 km from the surface of the earth is 7, 465 m/s . what is the period of the satellite?

6.04 x 10²s

6.60 x 10²s

6.60 x 10³s

6.04 x 10³s

29.

The charge of 20.0μ is stored on the capacitor when a potential difference between its two parallel plates is 200.0 V , what is the capacitance of the capacitor?

10.0μ F

1.0μ F

0.1μ F

4.0m F

30.

An air filled parallel plate capacitor is connected to a potential difference v

to store electric charge. If the area of the plates is and the separation between the plates is d, then the electrical energy stored on the capacitor is

31.

When a force F is applied to a wire of length L fixed at one end, the wire extends by x The tensile strain of the wire is

the extension x divided by the length L.

the length L divided by the extension x .

the applied force F divided by the extension.

the product of the force F and the extension x.

32.

Which one of the following factors does NOT affect the moment of inertia of an object?

The size of the object

The mass of the object

The axis about which the object is rotating

The angular speed of the object

33.

Which of the following describes the difference between static and dynamic equilibrium? In static equilibrium,

an object moves with constant velocity, whereas in dynamic equilibrium an object is at rest.

an object moves with constant acceleration, whereas in dynamic equilibrium, the object is at rest.

acceleration is zero, whereas in dynamic equilibrium the acceleration increases uniformly.

an object is at rest, whereas in dynamic equilibrium, the object moves with constant velocity.

34.

About an axis of rotation perpendicular to a plane of a couple, the forces in a couple produce

torques in opposite direction.

no torque.

non-zero resultant force.

torques in the same direction.

35.

Which one of the following statements describes the difference between heat and temperature?

Heat is a measure of the average kinetic energy, whereas temperature is a flow of energy from hotter to colder object.

Heat is an energy that flows spontaneously from colder to hotter object, whereas temperature is the degree of hotness and coldness.

Heat is a transfer of energy due to temperature difference, whereas temperature is a measure of the average kinetic energy.

Heat is measured with a thermometer in Kelvin, whereas temperature is measured with a Calorimeter in Joule.

36.

Which one of the following statements does NOT describe the relationship of physics with biology?

Physics and biology used to study how air vibrates in vocal cords.

Both physics and Biology are mainly concerned in the interaction of large number of particles.

Newtonian mechanics and biology are used to explain why cheetah is fastest animal.

Physics and biology are interrelated to each other in the study of vision and color detection.

37.

Which one of the following is a correct relation of physics with medicine?

Physics is a branch of medicine that sets standards during medical diagnosis.

A discipline called medical physics deals with principles of physics in medical diagnosis.

Modern medical imaging instrument are developed with knowledge of medicine and later used by physics.

Medicine is a branch of physics dealing with nuclear reaction.

38.

A ball is released from a height h It then rises to a maximum height of 1/2 h A after

collision with the ground. Neglecting air resistance, which one of the following statements is correct about the ball's mechanical energy?

Mechanical energy after collision is greater than mechanical energy before collision.

Mechanical energy after collision is less than mechanical energy before collision.

Mechanical energy of the ball increases while moving downward, but decreases while moving upward.

Mechanical energy before collision is equal to after collision.

39.

A glass tube of radius 30 mm is inserted in a bowl which contains methyl iodide of density 28 kg³ m³. If the contact angle of the methyl iodide in the tube is 30° and the surface tension is 0.26 N/m, how much height does the methyl iodide rises through the tube?

6.6 m

0.066 m

0.66 m

0.52 m

40.

Two rods, one made of brass and the other made of copper, are joined end to end. The length of the brass section is 0.2 m and the length of the copper section is 0.8 m Each segment has cross-sectional area 0.005 m²The free end of the brass segment is kept at 100° C and the free end of the copper segment is kept at 0°C. If the rate of heat flow is the same through both rods, what is the temperature of a point where the two segments are joined?

' ( K_cu385 W/ m.K , k_tr= 109 W/mK)

50°C

53°C

10.2°C

100°C

41.

A pressure applied to one point in an enclosed incompressible fluid is transmitted to all parts of the fluid without reducing in value. This is the principle of

Bernoulli

Pascal

Archimedes

Continuity

42.

Which of the following statement describes uniform motion?

An object moving at 30 m/s toward East and then 30 m/s toward North

An object moving around a circular track with constant speed of 30 m/s

An object, starting from rest, moving on a straight line to attain a velocity of 30 m/s

An object moving with constant speed of 30 m/s in a straight line

43.

Which of the following statement describes inertia of an object? It

makes to change state of rest of the object.

increases with an increasing velocity of the object

is a physical quantity which has a unit of mass.

increases with increasing mass of the object.

44.

Two objects, object A of mass m and object B of mass 2 mt are placed at heights of h₂ and h₂, respectively, from the surface of the Assuming that the gravitational field strength is constant, the potential energy of object A is twice of that of object B, if

h₁=1/2h₂

h₁=4h₂

h₁=1/4h₂

h₁=2h₂

45.

45 A car travels 60 m north and then 80 m west. What is the magnitude of the resultant displacement of the car from its starting point?

140 m

4800 m

100 m

20 m

46.

A person of mass 75 kg experiences a net force of 400 N when placed in an upward accelerating lift. What is its apparent weight?

1150 N

400 N

750 N

350 N

47.

A block of mass 20 kg is pushed horizontally, at constant speed, along a rough horizontal floor over a distance of 5 m . If coefficient of kinetic friction between the block and the surface is 0.4 , what is the amount of work done by friction?

-400 J

-100 J

-40 J

-1000 J

48.

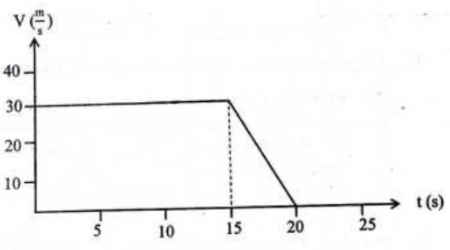

The velocity-time graph of an object moving along a straight line toward east is described by the figure shown Below.

What is the total displacement moved by the object?

600 m East

375 m East

525 m East

450 m East

49.

A 200 N force is required to be applied at one end of a 1 m long lever, 80 cm from its fulcrum, in order to lift a load of 600 N placed at the other end as shown the figure below.

What is the efficiency, of the lever?

25%

75%

83%

17%

50.

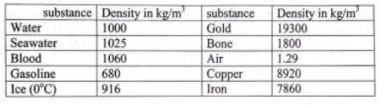

A substance with a mass of 2 kg has a volume of 2.5x 10^-3m³. What is the relative density of the substance?

1.25

0.8

80

8.0

51.

The gauge pressure at a point in a fluid at rest is defined as

the sum of absolute pressure and atmospheric pressure.

the atmospheric pressure difference between sea level and the local area at which the fluid exists.

the pressure difference between the absolute pressure and the atmospheric pressure.

the actual pressure at a given point relative to absolute vacuum.

52.

How do we use manometer to measure pressure of a given gas? We use in such a way that

the principle of the hydrostatic equilibrium is considered to measure the pressure of unknown gas.

the pressure at the surface of open end manometer is the same as the gas pressure in closed tube.

the gauge pressure in a fluid in the open end equals the gas pressure in closed tube.

the gauge pressure equals the atmospheric pressure.

53.

Consider two balls A and B are projected with the same velocity, v₀ at angles θ₁and θ₂ , respectively, 0< θ₁<45° and 45° θ₂< <90°. Which one of the following statements is correct about the motion of the balls?

The range of ball A is smaller than its maximum height.

Both halls have equal speed at their respective maximum height.

The two balls cover equal ranges when θ₁+θ₂ =90°

Ball A takes longer time than ball B to reach its maximum height.

54.

car initially traveling at speed of 20 m/s undergoes a constant deceleration of magnitude 1.5 m/s². If the radius of each tire is 0.3 m , how many revolutions does each tire make, without slipping, before the car comes to rest?

44.44 rev

444.4 rev

70.77 rev

133.33 rev

55.

A constant tangential force is applied on a rim of uniform solid disk of mass m=50 kg and radius r=0.5m . If the angular speed of the disk changes by 1rev/s within 2.0 s , what is the magnitude of the torque produced by the force? (moment of inertia of disk I=m²/2)

3.125 Nm

8.25 Nm

39.3 Nm

19.6 Nm

56.

A loop of 0.1 m wide in diameter is placed in x y-plane in uniform magnetic field of 0.6 T that is perpendicular to the plane of the loop. What is the net magnetic flux through the coil?

9.4 x 10^-3 Wb

4.7 x 10^-3 Wb

1.9 x 10^-2Wb

5.6 x 10^-2 Wb

57.

A 12 V voltage source is connected across the primary coil of a transformer having 600 turns. If the secondary coil of a transformer has 1000 turns, what voltage appears across the secondary coil?

12.0 V

20.0 V

7.2 V

72.0 V

58.

The follbone, iron and seawater will sink in water.owing table shows the density of different objects at 20°C.
